Solve problem 2D of Seismic Amplification in VISUAL-Q4M

The following examples are intended to help users become familiar with Visual-Q4M, especially novice users. Users are expected to have general knowledge of Seismic Geotechnical. These examples are intended as a demonstrate of the VisualQ4M and should not be used for engineering design work but for research and teaching purposes only.

For more information, refer to the manual supplied with the software.

Focusing Effects (Canyon Model)

  • In the calculation it was considered a simple model mono-lithological with a topographic trend characterized by different slopes (45° and 30°) ...

    Download VQ4EX2D_01

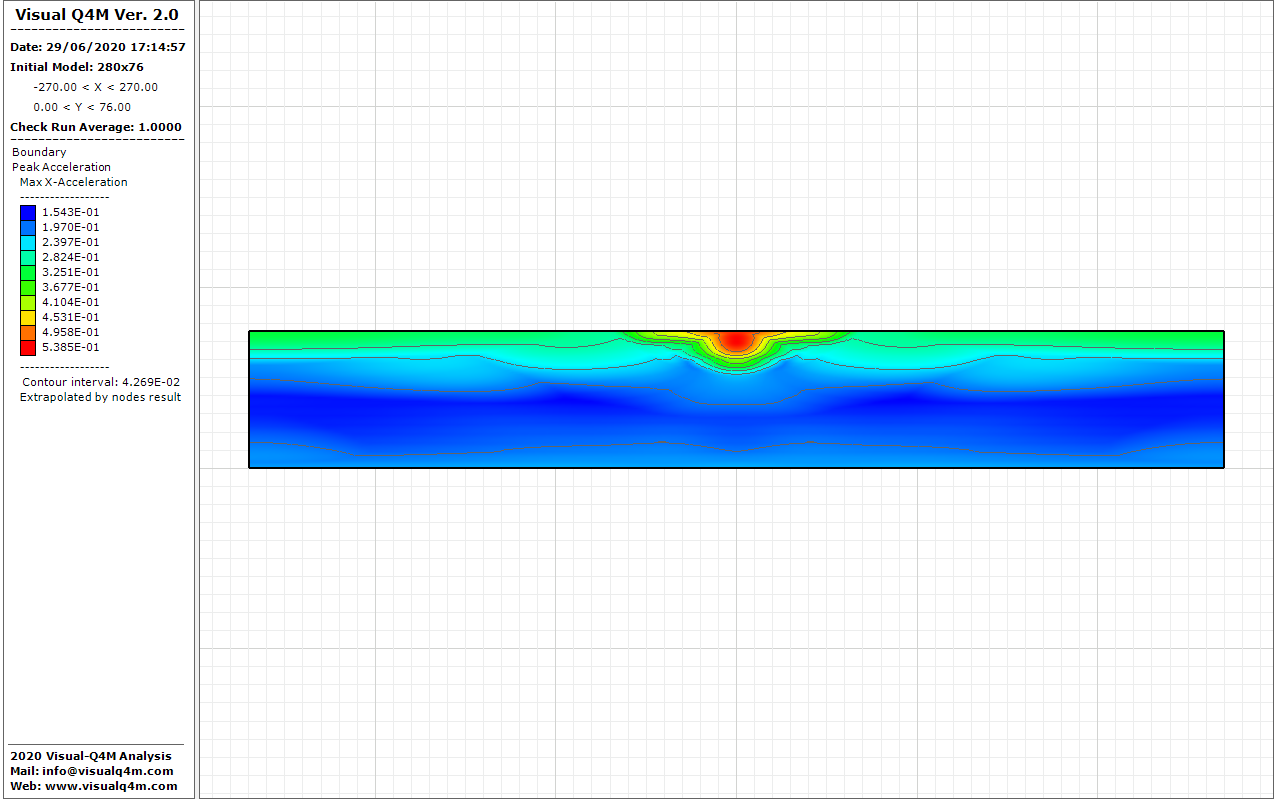

Focusing Effects (Buried Valley)

  • In the calculation there is a model with two lithologies and a regular topographic...

    Download VQ4EX2D_02
