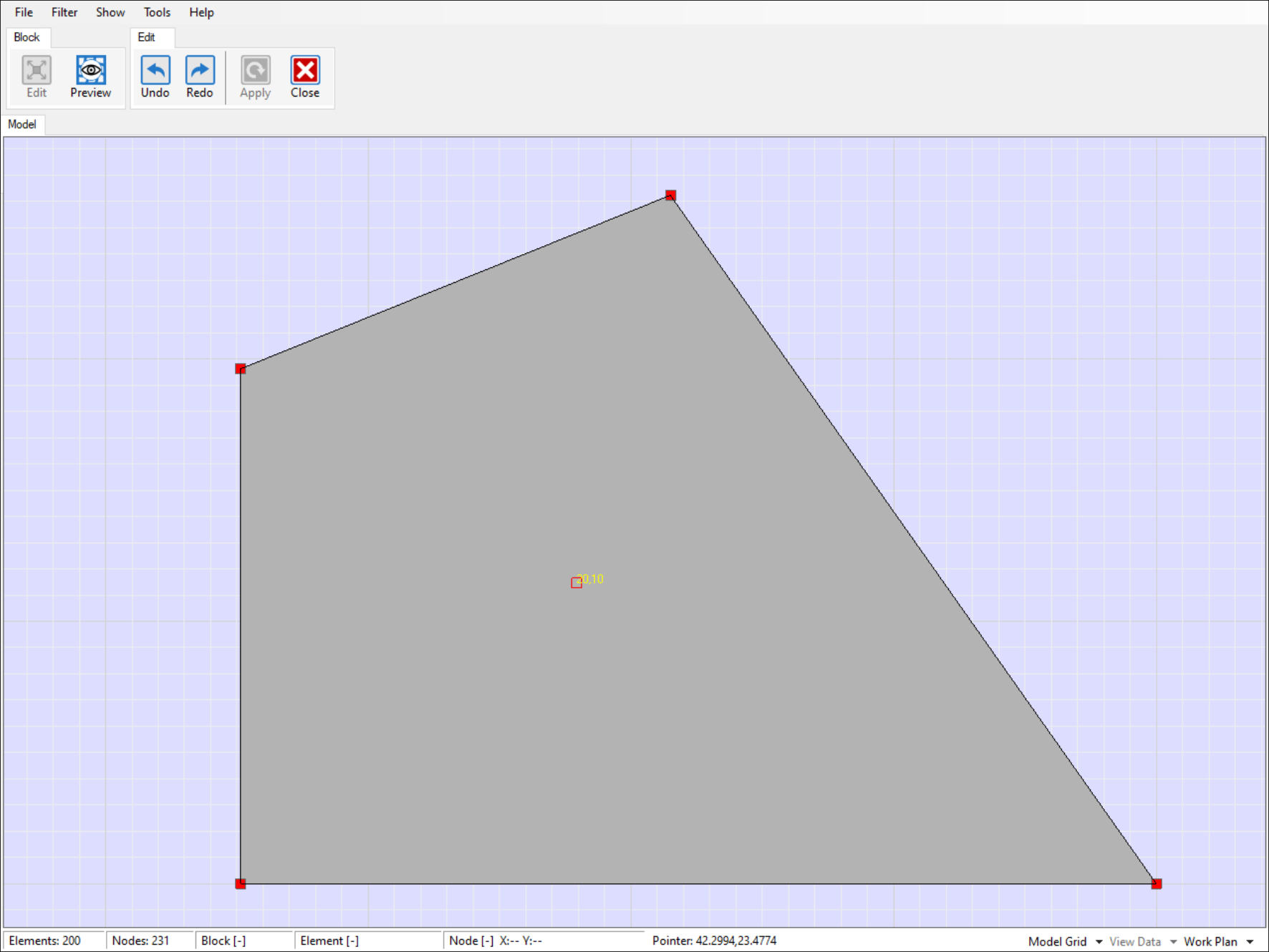

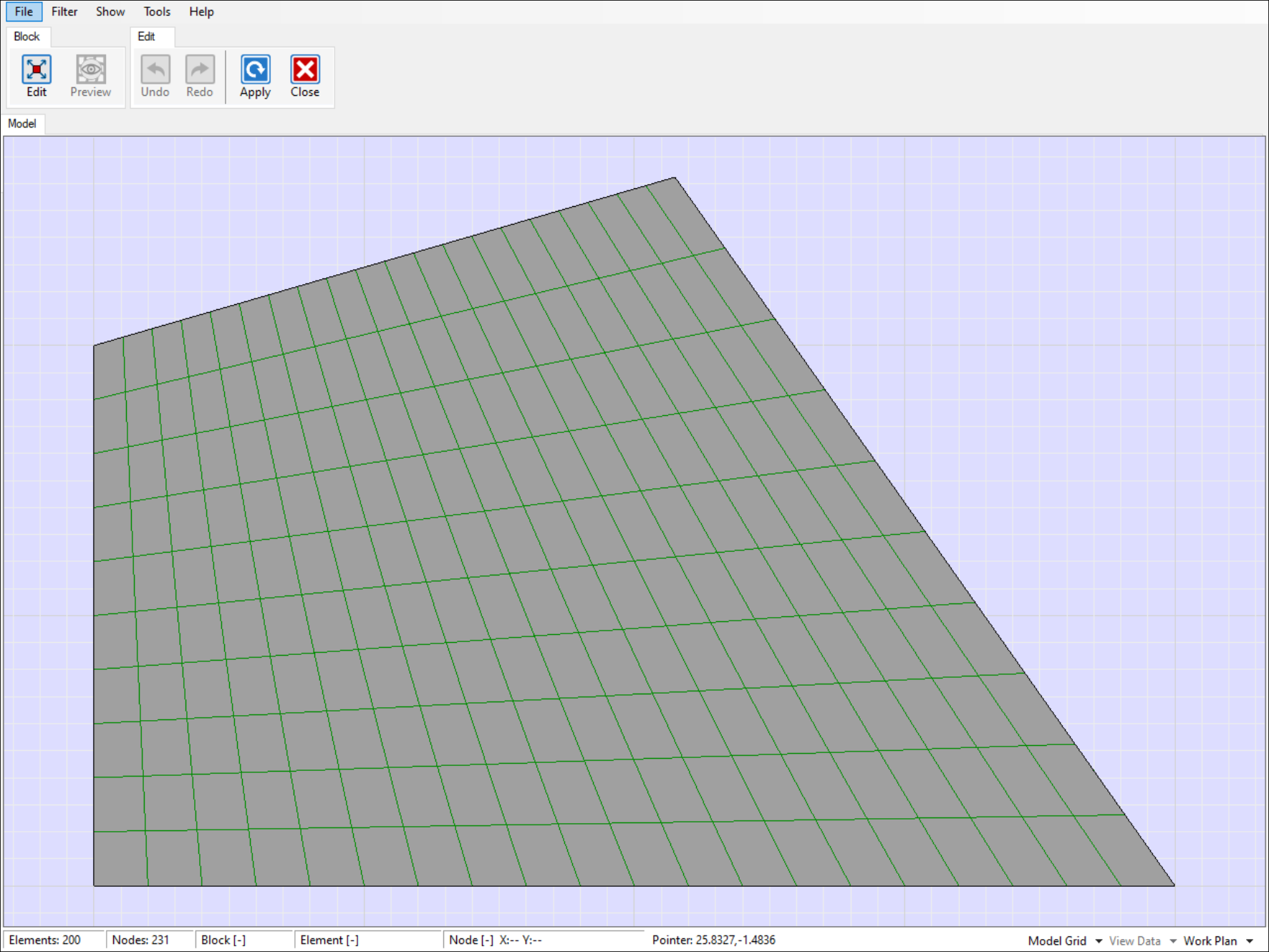

The Visual-Q4M has a virtual grid editing environment where you can change the grid size and number of zones to fit the model to the section to be modeled.

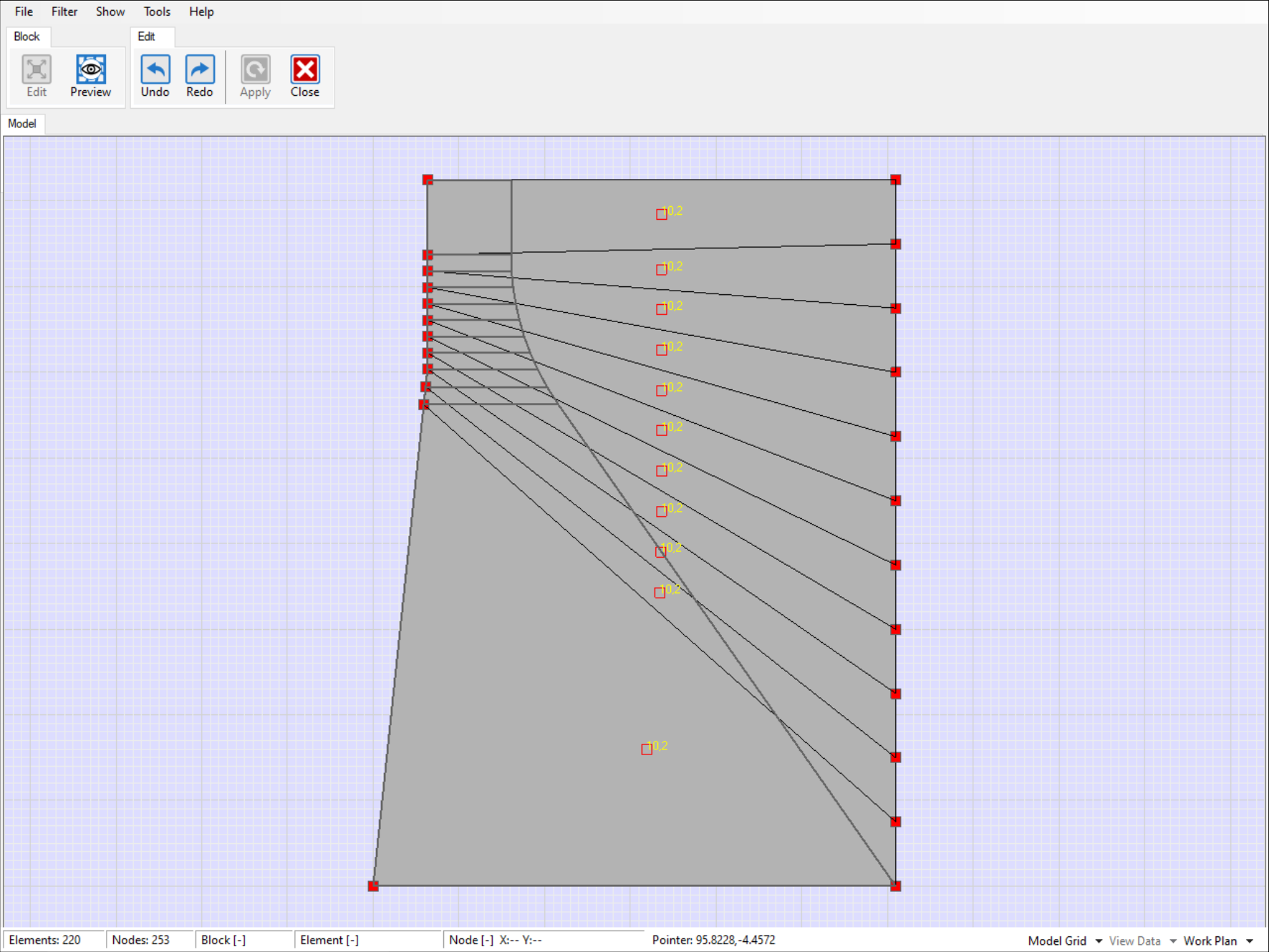

In this environment, for more precision, it's possible use also the vertices of the dxf file. The vertices of the grid-blocks (or of the single block) can be moved and hooked to the DXF vertices by modifying and deforming the blocks according to the needs. The modification can be performed both graphically and numerically directly on the chosen node.

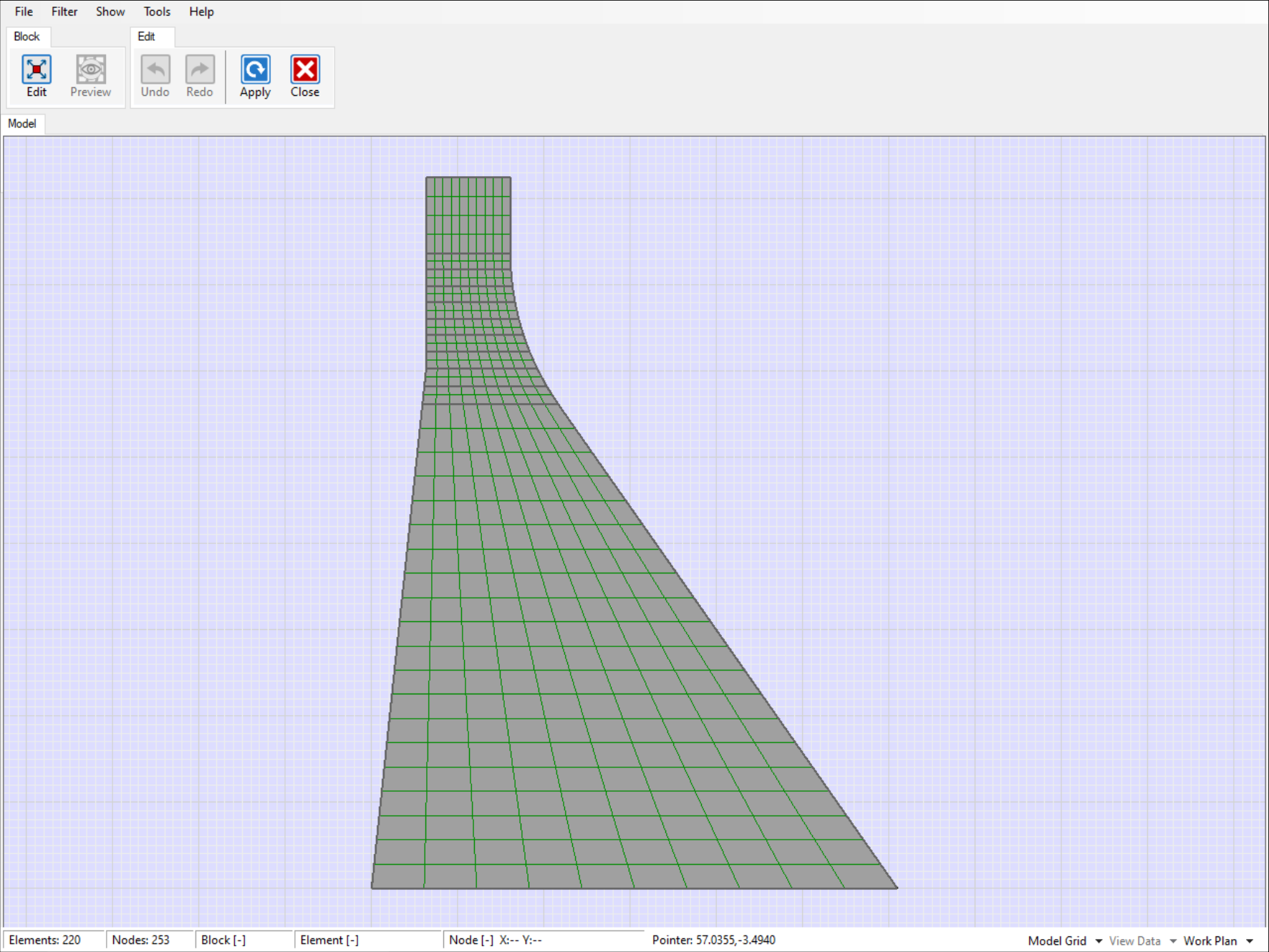

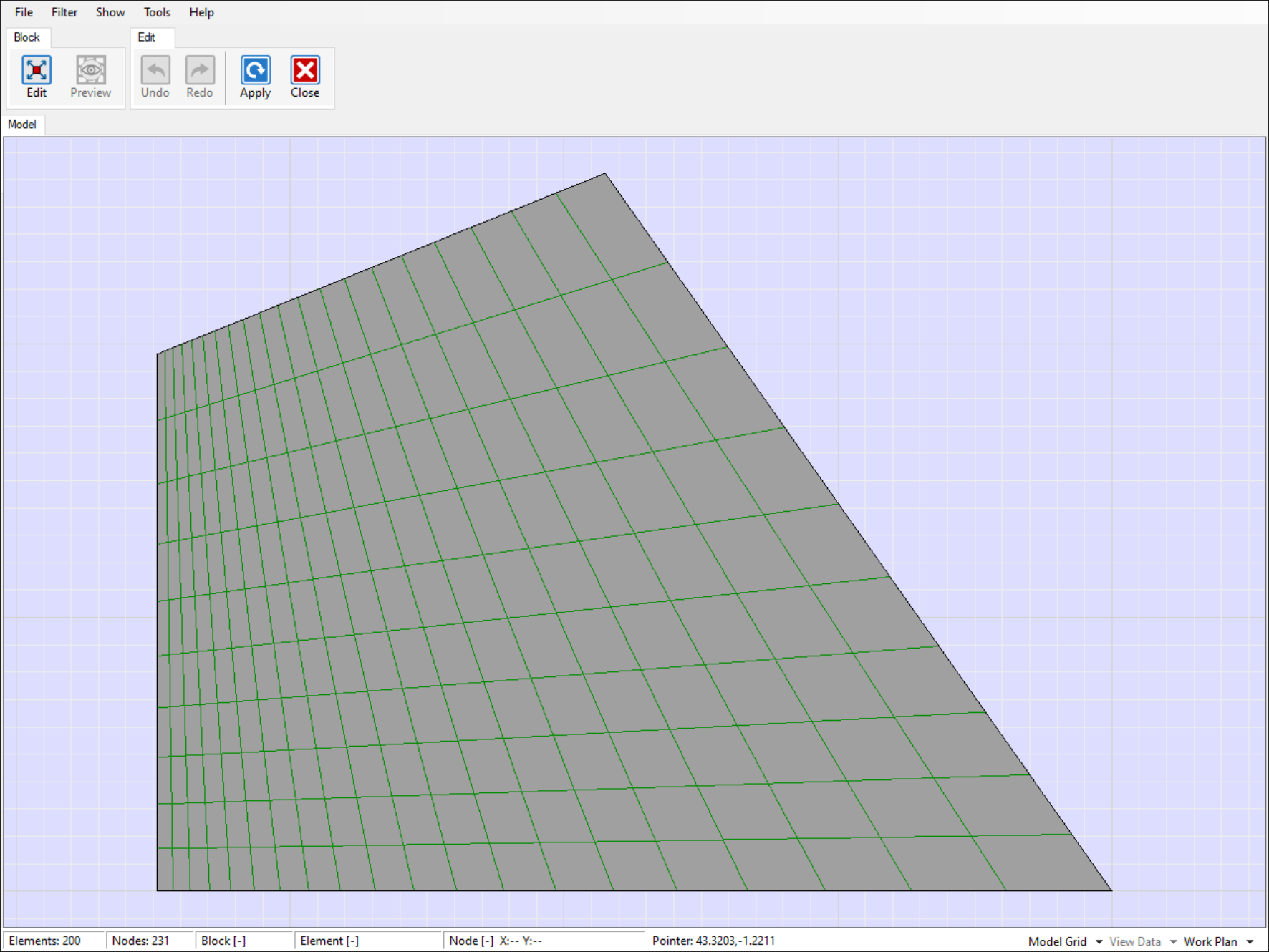

Each block is individually modeled, but when it's changed the zones number in a block, it's recalculates automatic the continuity of zones in the entire model.
