Earthquake

In the Visual-Q4M it is possible to perform analysis with:

• Input Motion X - Component
• Input Motion XY - Component

For to perform an analysis both in X and Y, the two components of the dynamic load must have the same number of records and the same time step. Is not possible perform an analysis only the Y-Component. The Visual-Q4M has the algorithms for signal analysis that can be processed for:

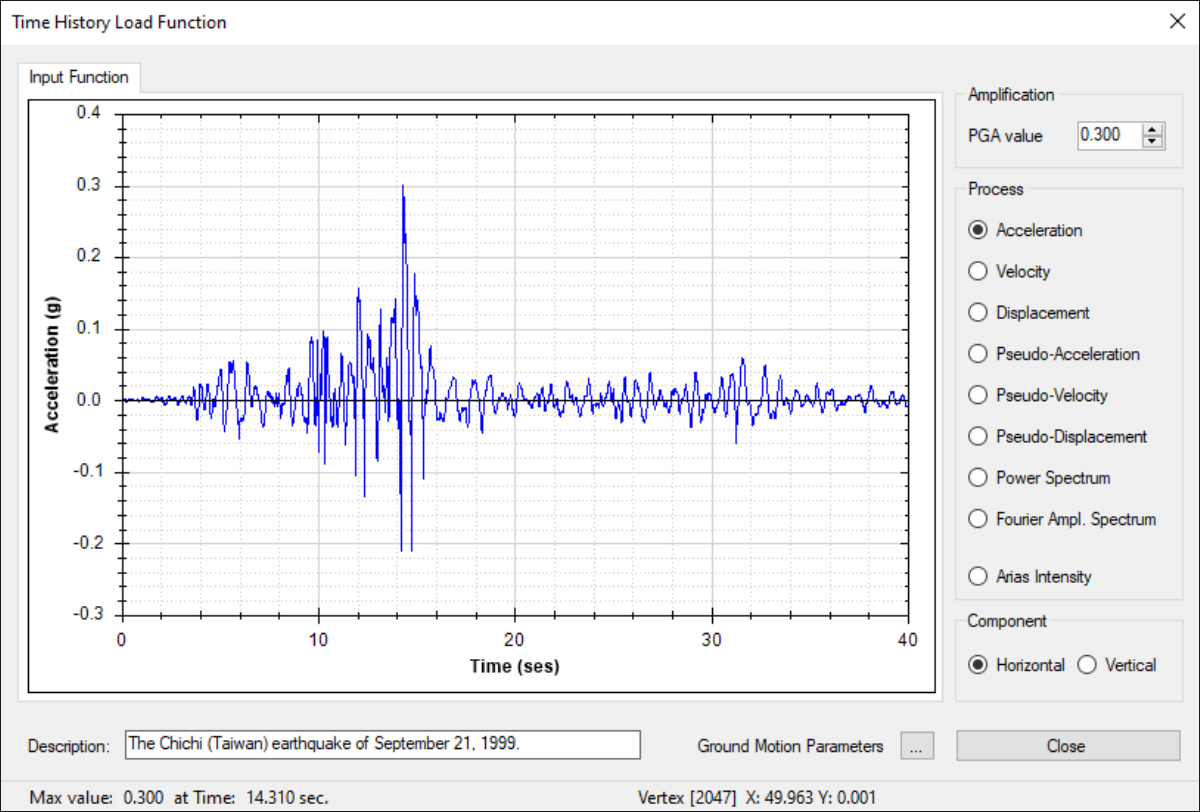

• Acceleration
• Velocity
• Displacement
• Pseudo- Acceleration
• Pseudo- Velocity
• Pseudo- Displacement

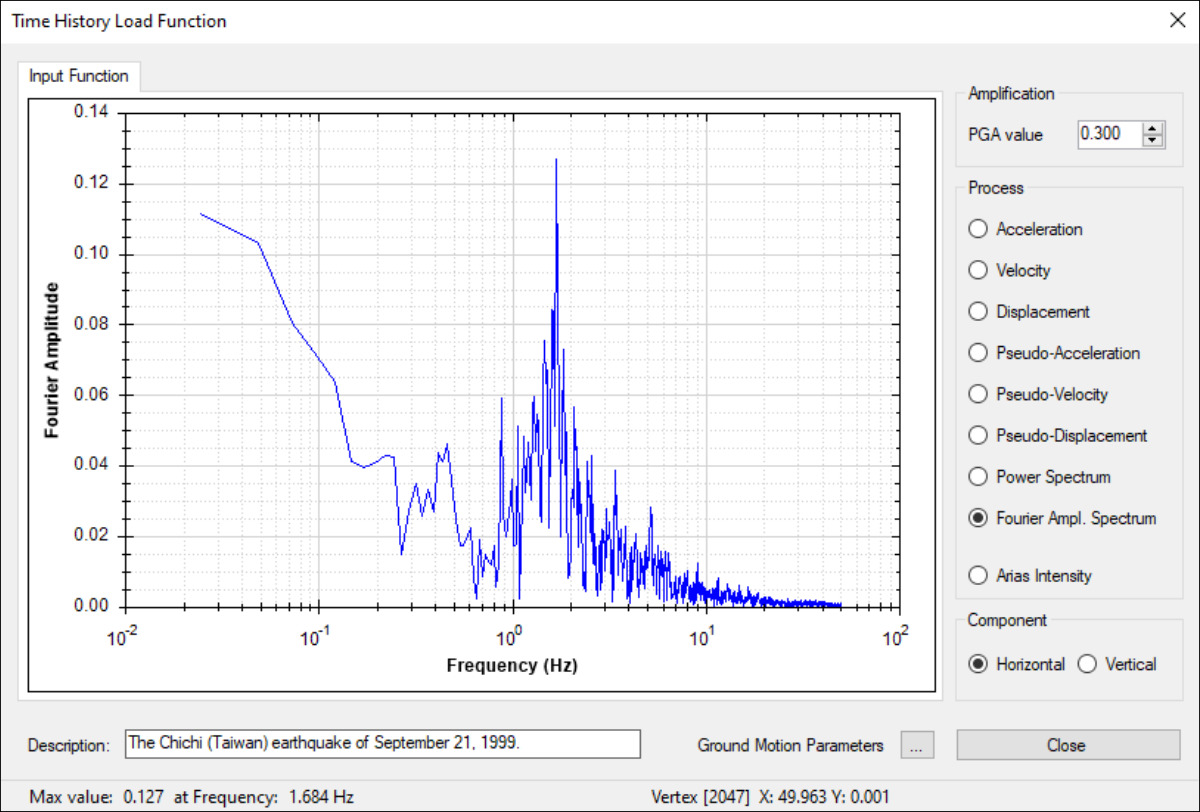

• Fourier Transform Spectrum
• Power Spectrum

All accelerograms can be scaled.

The internal database can be updated automatically with a series of standard Input Motions

• ChiChi_longt.Acc - The Chichi (Taiwan) earthquake 21/09/1999
• ChiChi_tranv.Acc - The Chichi (Taiwan) earthquake 21/09/1999
• Corralitos.Acc - The Loma Prieta (Corralitos) earthquake 18/10/1989
• Emeryville.Acc - The Loma Prieta (Emeryville) earthquake 18/10/1989
• Friulli.Acc - Friuli (Italia) 6 Maggio 1976
• Hollister.Acc - The Hollister (USA) 28/11/1974
• Imperial_Valley.Acc - Imperial Valley 10/15/79
• Irpinia_Bagnoli.Acc - Irpinia (Bagnoli Irpino) Earthquake, 11/23/80
• Irpinia_Calitri.Acc - Irpinia (Calitri) Earthquake, 11/23/80
• Loma_Prieta.Acc - Loma Prieta earthquake
• Loma_Gilroy.Acc - Loma Gilroy earthquake
• Parkfield.Acc - Parkfield earthquake
• Kocaeli.Acc - The Kocaeli (Turchia) 17 Agosto 1999
